Multi-stage, horizontal, axial splitting; centerline installation, support at both ends. The impeller is mounted back-to-back to balance the axial force, and the double volute of the pressurized water chamber is designed to balance the radial force. The first-stage double-suction impeller is designed for low cavitation conditions.
PARAMETER
| HBM | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 1440 m3/h | Up to 6340 Gpm |
| Head | Up to 1600 m | Up to 5250 feet |
| Temperature Range | -60 ~ +200 Dec C | -140 ~ +392 Dec F |
| Pressure Range | Up to 250 bar | 3600 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Side / Side | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Double suction is avaliable | |
| Flange Standard | ANSI / HG / DIN / JIS | |

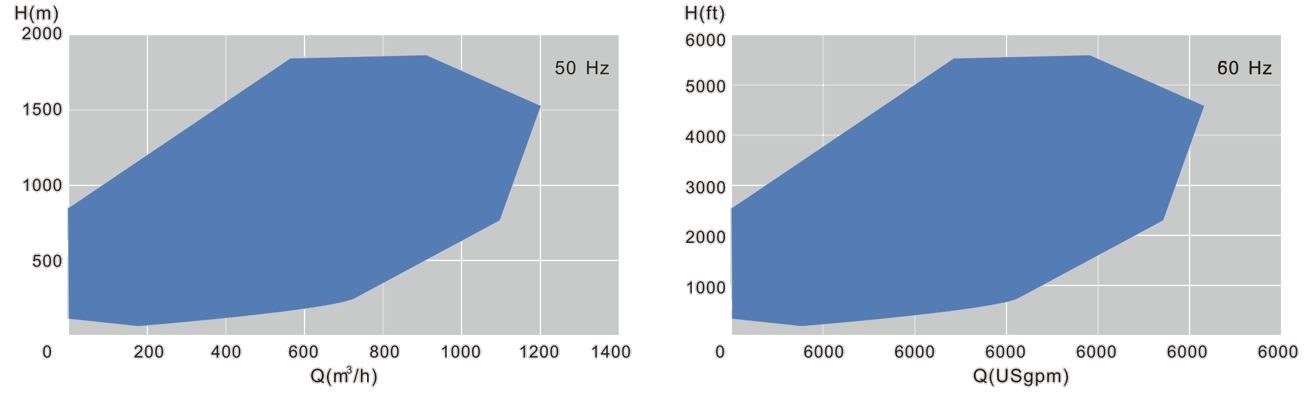

PERFORMANCE
