Description

Single stage, single suction radial impeller, radial split volute. Axial suction, axial discharge, suction and discharge center are located at the same horizontal line, vertical installation, small footprint and easy installation. The pump has a separate bearing frame and the bearings are greased. The pump and motor are mounted on a monolithic bracket and are connected by a flexible coupling with an extended section.

PARAMETER

OHV	ISO	US
Design	ISO 13709	API 610
Capacity	Up to 2600 m3/h	Up to 11400 Gpm
Head	Up to 300 m	Up to 980 feet
Temperature Range	-80 ~ +450 Dec C	-170 ~ +840 Dec F
Pressure Range	Up to 100 bar	1450 psi
Material Range	Carbon Steel, SS, Duplex, Super Duplex, Hast alloy
Nozzle Direction ( suc / dis )	Inline Position
Motor Sync. Speed	1500 / 3000 rpm	1800 / 3600 rpm
Options	Jacket type avaliable
Flange Standard	ANSI / HG / DIN / JIS

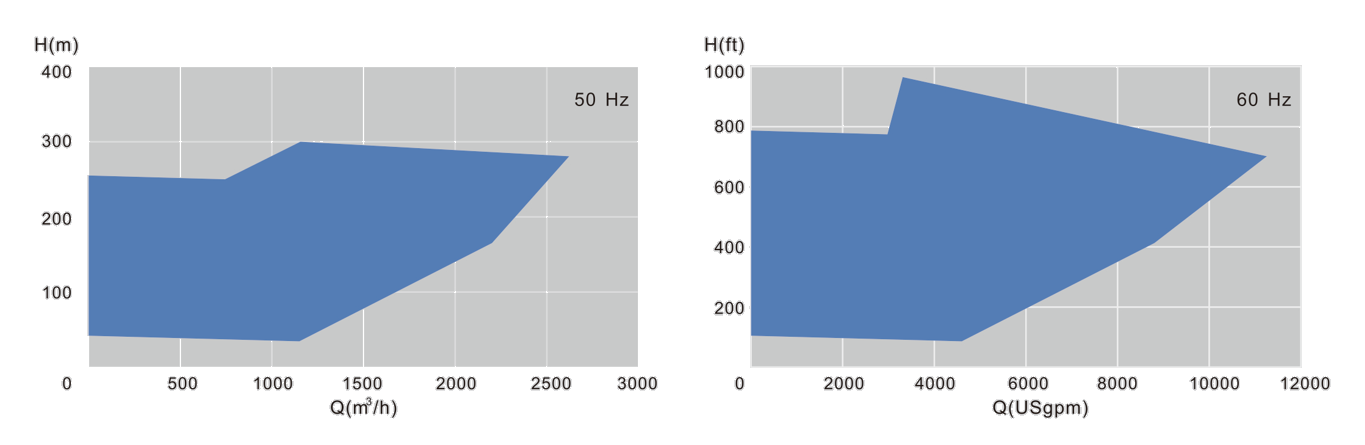

PERFORMANCE

Laundry detergent

The pump type OHV (OH3) vertically inline mounted, flexible coupled, radial split case, single stage, single suction, heavy duty centrifugal process pumps. The inline configuration is a compact pumping solution that eliminates the need for an expensive baseplate saving valuable floor space.
