Vertical installation of long-shaft submerged pump, the shaft structure is safe and reliable, the rotor parts can be axially adjusted, the rotor parts are supported by multiple points, the operation is reliable, the sliding bearing is flushed and lubricated, and the pump vortex chamber above 80mm diameter adopts double scroll structure. balance the radial force.
PARAMETER
| VSL | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 1100 m3/h | Up to 4843 Gpm |
| Head | Up to 135 m | Up to 443 feet |
| Temperature Range | -80 ~ +500 Dec C | -170 ~ +932 Dec F |
| Pressure Range | Up to 200 bar | 2900 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Bottom / Through discharge pipe | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Jacket type is avaliabel | |
| Flange Standard | ANSI / HG / DIN / JIS | |

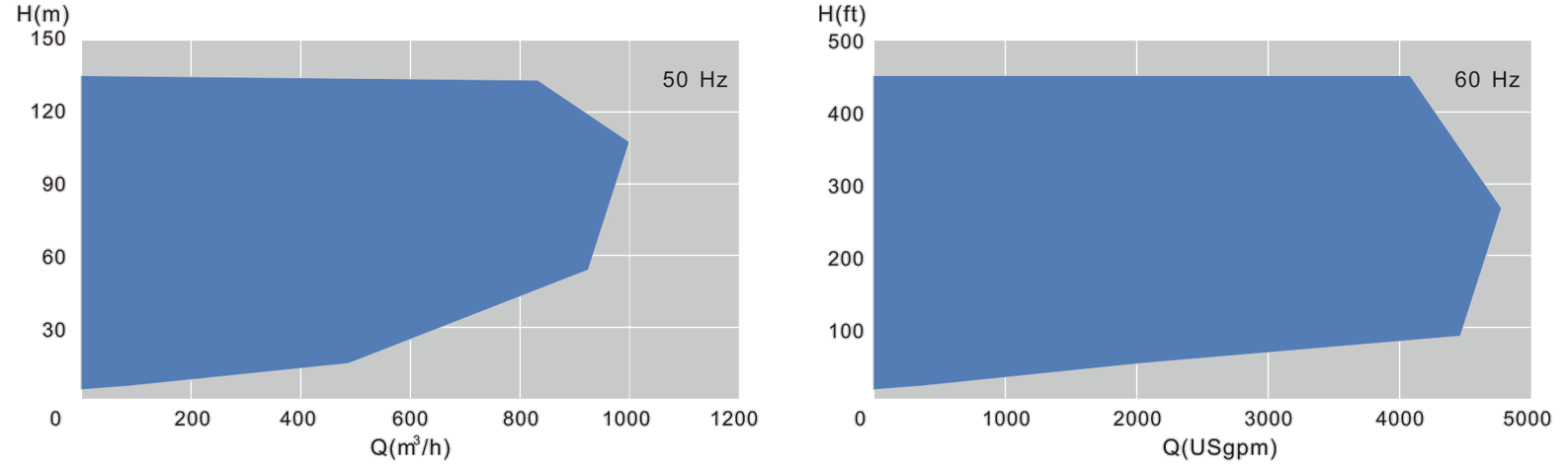

PERFORMANCE
