The VSLM pump is a vertical suspended sealless magnetic drive pump that has all of the benefits in a compact package. It is particularly suited for tank unloading of hazardous and valuable process fluids
PARAMETER
| VSLM | ISO | US |
| Design | ISO 15783 | API 685 |
| Capacity | Up to 2600 m3/h | Up to 11400 Gpm |
| Head | Up to 300 m | Up to 980 feet |
| Temperature Range | -80 ~ +250 Dec C | -170 ~ +482 Dec F |
| Pressure Range | Up to 40 bar | 580 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Bottom / Through discharge pipe | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Jacket type is avaliabel | |
| Flange Standard | ANSI / HG / DIN / JIS | |

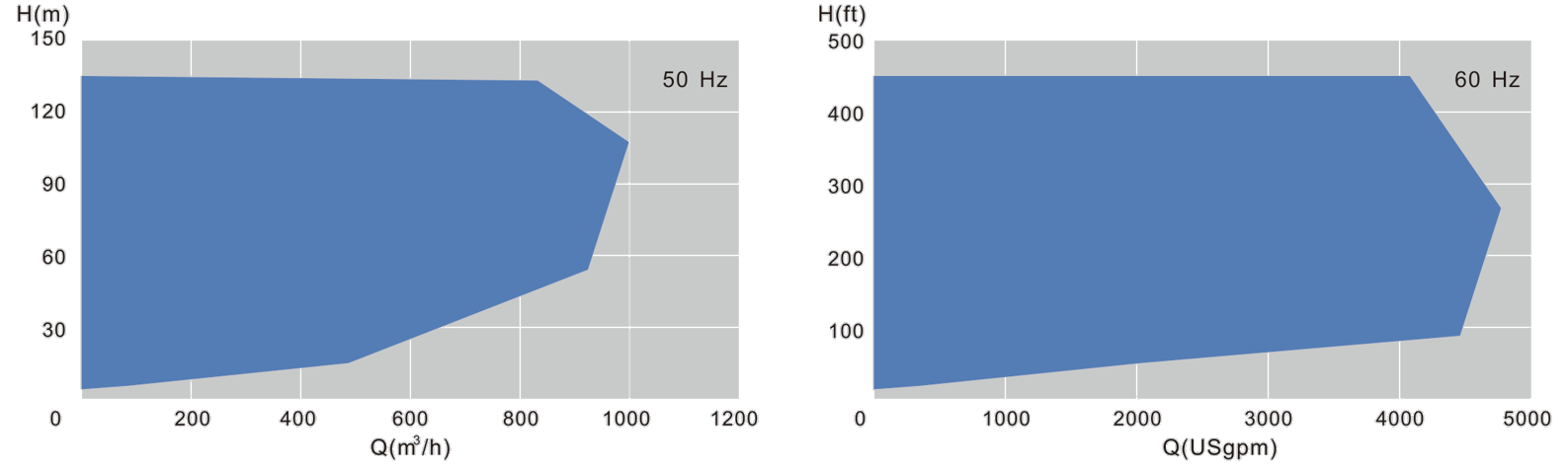

PERFORMANCE
