Single-stage, double-suction, axial splitting, two-end support, horizontal and foot mounting; double suction impeller makes the pump axial force self-balancing, and the medium-opening structure eliminates the need to disassemble the pipeline and drive machine when the pump is repaired. A variety of bearing structure design to meet different working conditions.
PARAMETER
| HBD | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 18000 m3/h | Up to 80000 Gpm |
| Head | Up to 440 m | Up to 1440 feet |
| Temperature Range | -40 ~ +200 Dec C | -104 ~ +392 Dec F |
| Pressure Range | Up to 50 bar | 725 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Side / Side | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Vertical type is avaliable | |
| Flange Standard | ANSI / HG / DIN / JIS | |

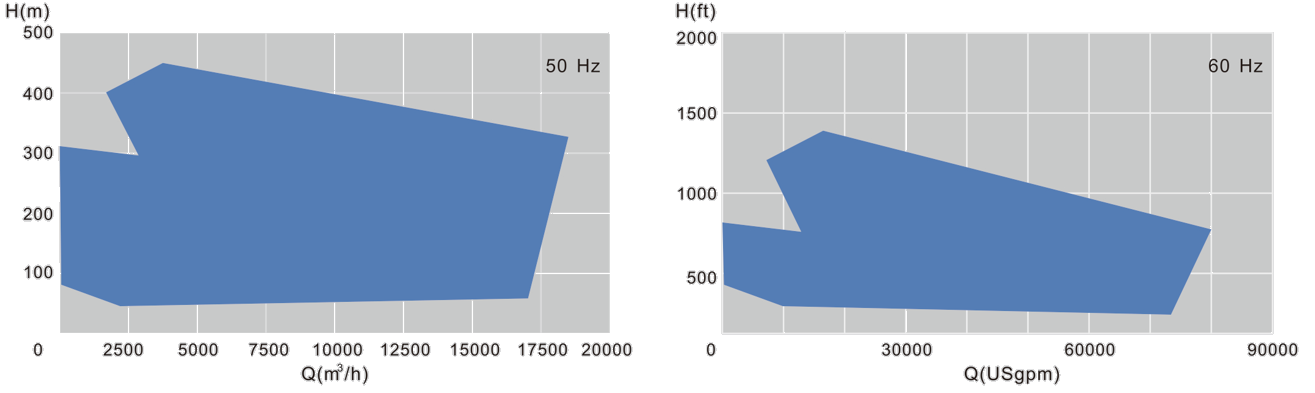

PERFORMANCE
