Multi-stage vertically suspended pumps with bowl type diffuser. The top antifriction bearing is lubricated by oil. The bottom sliding bearing is multi-point supported. The first stage impeller can be single or double suction. It also can be lower arranged. The axial force is efficient balanced by balance drum which can not be impacted by axial position. Structure design has thought-out and mature consideration on support, connection, bearing cooling, etc. Sorts of available auxiliary and monitoring instruments make it high safety and reliability.
PARAMETER
| VMT | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 6000 m3/h | Up to 26400 Gpm |
| Head | Up to 500 m | Up to 1640 feet |
| Temperature Range | -80 ~ +250 Dec C | -170 ~ +480 Dec F |
| Pressure Range | Up to 100 bar | 1450 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Side / Side | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Volute type is avaliable | |
| Flange Standard | ANSI / HG / DIN / JIS | |

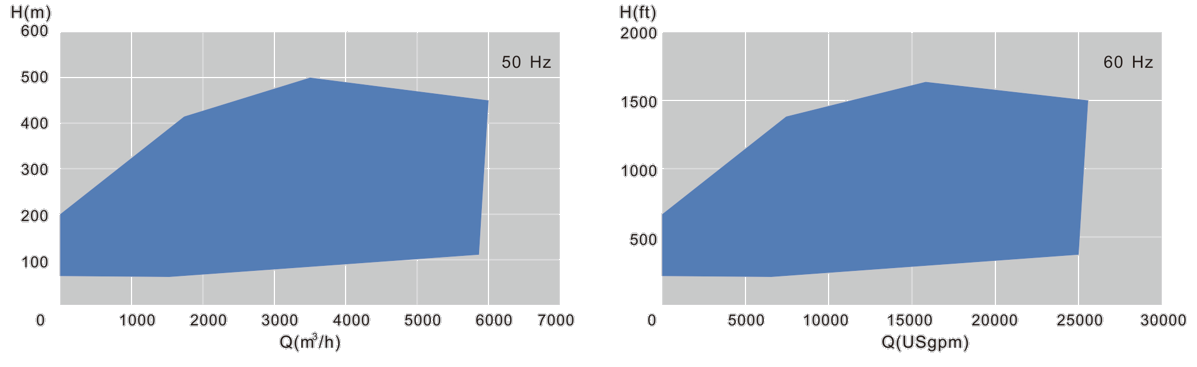

PERFORMANCE
