Description

No intermediate bearings inside the liquids are allowed. Performance of the pump can be customized to customer requirements by means of a closed, open and semi-open impeller, where leakages are forbidden for environmental and health protection reasons

PARAMETER

VSC	ISO	US
Design	ISO 13709	API 610
Capacity	Up to 400 m3/h	Up to 1760 Gpm
Head	Up to 60 m	Up to 190 feet
Temperature Range	-20 ~ +200 Dec C	-68 ~ +390 Dec F
Pressure Range	Up to 25 bar	363 psi
Material Range	Carbon Steel, SS, Duplex, Super Duplex, Hast alloy
Nozzle Direction ( suc / dis )	Bottom / Through discharge pipe
Motor Sync. Speed	1000 / 1500 / 3000 rpm	1200 / 1800 / 3600 rpm
Options	Jacake type is avaliable
Flange Standard	ANSI / HG / DIN / JIS

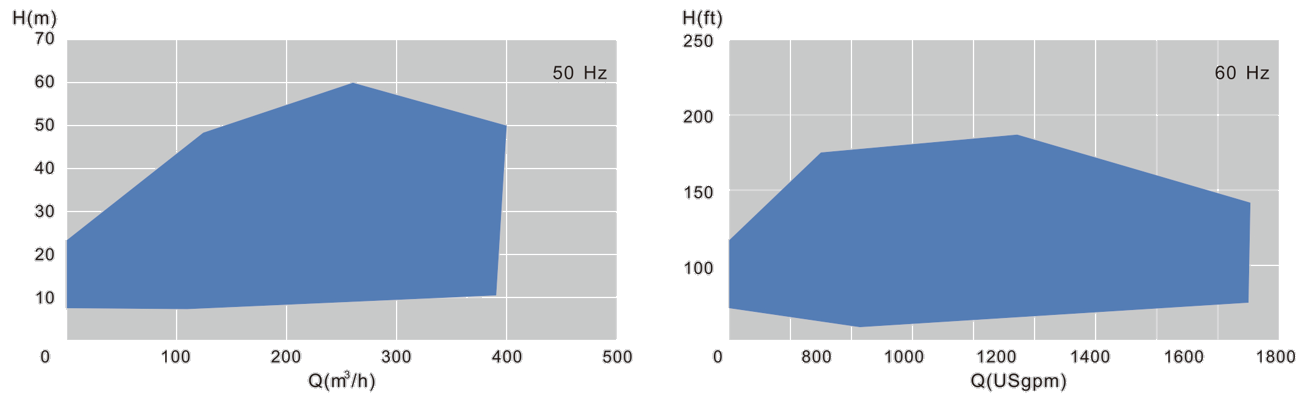

PERFORMANCE

Lavender-scented laundry pods

The VS5 type VSC is a vertically mounted suspended single casing volute cantilever pump with no shaft supports, seals, bearings or bushings below the bearing housing. All bearings are suspended in a cartridge above the cover plate to provide protection in case of flooding. The VSC has a closed impeller and can be supplied with a wide variety of competitive hydraulics.

Abrasive or heavy contaminated liquids in refineries petrochemical and industrial plants Clean/contaminated fluids.
Fibrous, textile, leather, rubber, polymer suspensions.
Delicate crystals such as Salt and Xylene.
Hydrocarbons
