The pump is built to API 685 specifications and is suitable for petrochemical processing, petroleum production and refining, offshore and chemical processing applications complying with all industry specifications. The HBBM is typically used in toxic, aggressive, hot, crystallising and high value processes.
PARAMETER
| HBBM | ISO | US |
| Design | ISO 15783 | API 685 |
| Capacity | Up to 1400 m3/h | Up to 5020 Gpm |
| Head | Up to 3200 m | Up to 10400 feet |
| Temperature Range | -80 ~ +450 Dec C | -170 ~ +840 Dec F |
| Pressure Range | Up to 400 bar | 5800 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Top / Top | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Diffuser type / Volute type are availiable | |
| Flange Standard | ANSI / HG / DIN / JIS | |

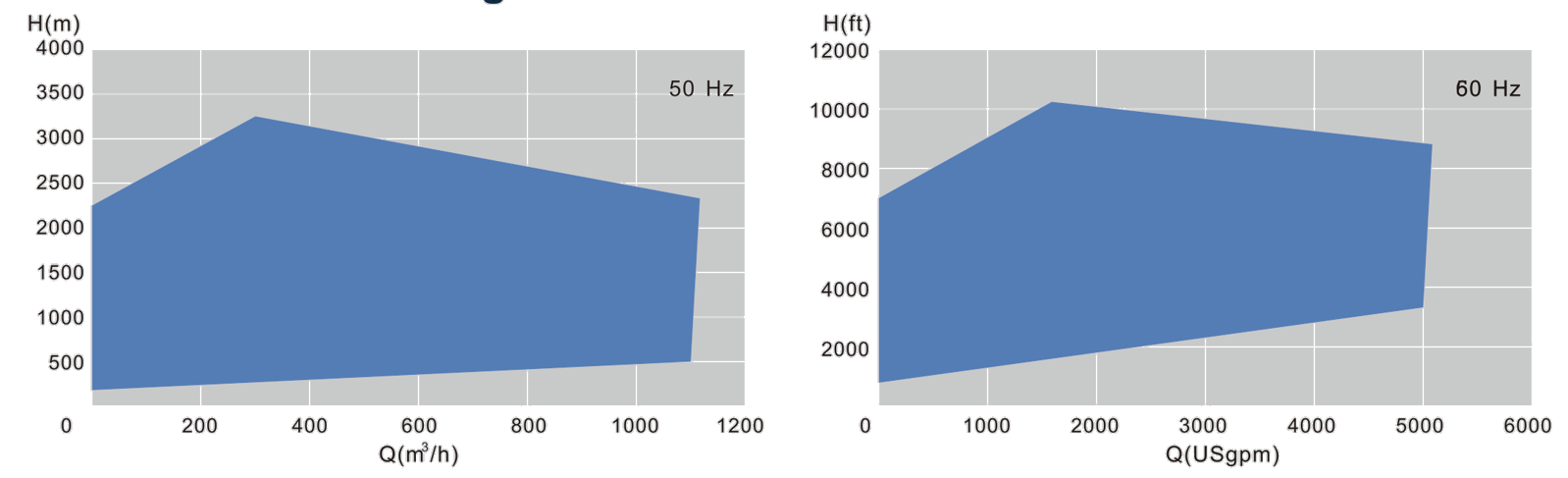

PERFORMANCE
