Vertical installation, multi-stage, radial split, cylindrical barrel, the first stage of the use of anti-cavitation performance of the impeller. In the case of a large differential pressure, the balance drum structure is used to balance the axial force, and the residual axial force is received by the angular contact ball bearings in pairs. The housing is only subjected to inlet pressure, and the length of the housing and the depth of installation of the pump are determined by the NPSH cavitation performance requirements
PARAMETER
| VMB | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 1800 m3/h | Up to 7925 Gpm |
| Head | Up to 1000 m | Up to 3280 feet |
| Temperature Range | -80 ~ +250 Dec C | -170 ~ +480 Dec F |
| Pressure Range | Up to 150 bar | 2175 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | Side / Side | |
| Motor Sync. Speed | 1500 / 3000 rpm | 1800 / 3600 rpm |
| Options | Volute type is avaliable | |
| Flange Standard | ANSI / HG / DIN / JIS | |

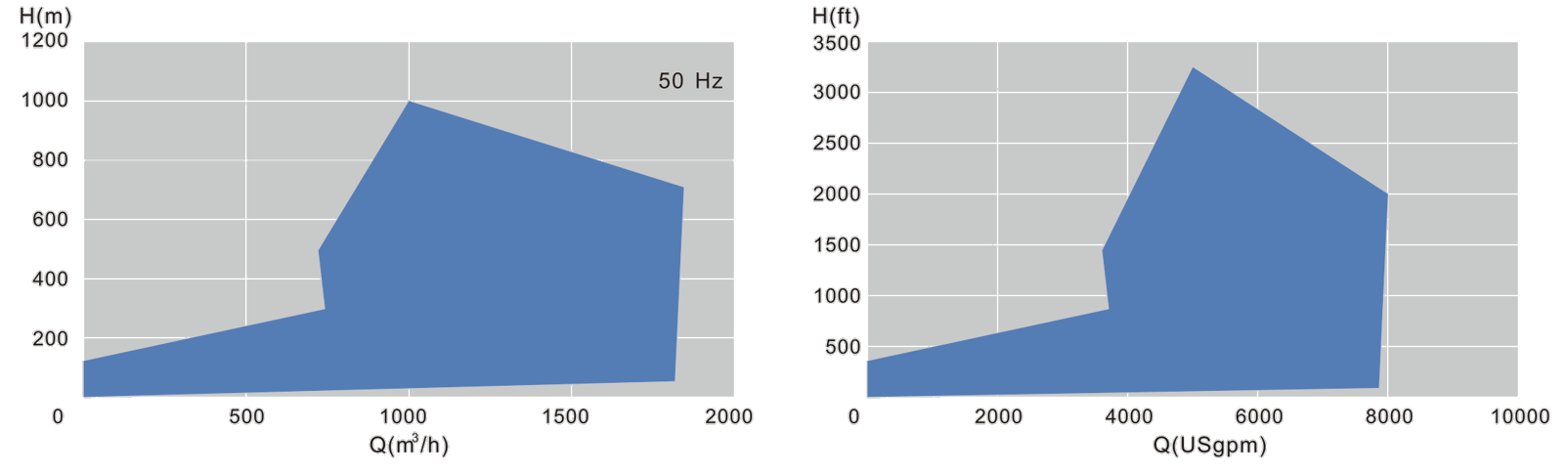

PERFORMANCE
