This type of pump is horizontal single stage, single suction, centerline supported have been widely used in the chemical, petrochemical and other industries.
Cutting edge quality control systems insure that these pumps meet highest global standard and their unique design for the best performance will satisfy you with superior quality and low-cost operation.
PARAMETER
| VMBM | ISO | US |
| Design | ISO 13709 | API 610 |
| Capacity | Up to 2600 m3/h | Up to 11400 Gpm |
| Head | Up to 300 m | Up to 980 feet |
| Temperature Range | -80 ~ +450 Dec C | -170 ~ +840 Dec F |
| Pressure Range | Up to 100 bar | 1450 psi |
| Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | |
| Nozzle Direction ( suc / dis ) | End / Top Center-Line discharge ( self-venting ) | |
| Motor Sync. Speed | 1000 / 1500 / 3000 rpm | 1200 / 1800 / 3600 rpm |
| Options | Semi-Open / Open impeller, low flow type | |
| Flange Standard | ANSI / HG / DIN / JIS | |

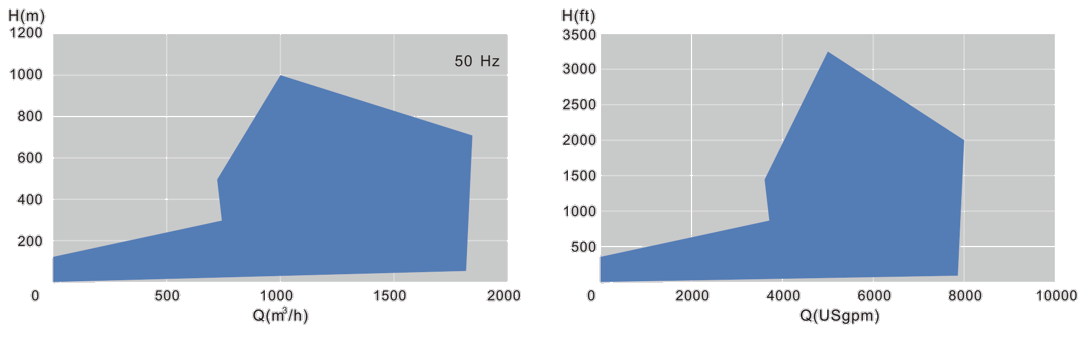

PERFORMANCE
